| Category | Descriptions | |

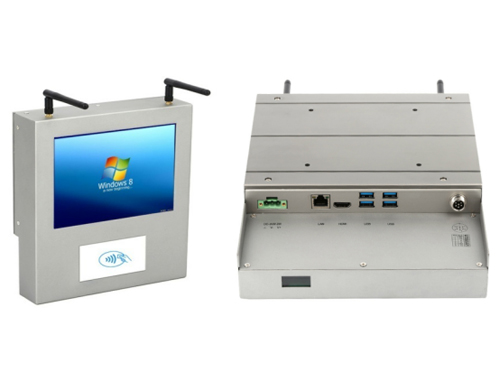

| Model(型號) | No. | YL-4011 |
| 核心模塊 Nucleus Module | Intel? Celeron? Processor J3160 (Quad Core 2M Cache, up to 2.24 Ghz) | |
| CPU | Intel? Pentium? Processor N3710 (Quad Core 2M Cache, up to 2.56 Ghz) | |
| Intel? Celeron? Processor N3010 (Dual Core 2M Cache, up to 2.24 GHz) | ||
| Chipset | Intel? Braswell integrated chipset | |
| BIOS | AMI 64Mbit Flash ROM | |
| RAM | Onboard DDR3L 1600MHZ 2GB(Up to 8GB) | |
| Storage | 1*mSATA slot (32G/64G/128G SSD optional ) | |
| 1*SATA bay(7+15P 500G-1T 2.5" HDD optional) | ||
| Graphic | Integrated Intel? HD Graphics 400 | |
| Network |
1*Intel? Ethernet Controller I211AT 1000M lan (Up to 2, Support Intel? Ethernet Controller I210 Series) | |
| Display(顯示) | LCD | 8.1" WXGA TFT color LCD, resolution: 800 x 600, LCD MTBF: 50,000 HRS (standard) |
| HMI(觸摸屏) | HMI panel | 4-wire resistive, Touch time:1 million @ 250gf Force |
| I/O(接口) | Lan | 1*RJ45 (Gigabit Ethernet) |
| WIFI | 1*WiFi module with 2 antennas(Optional) | |
| USB | 4*USB3.0 | |
| COM | 2*RS232 | |
| Display | 1*LCD, 1*HDMI | |
| Button | 1*Power button | |
| Expansion |
1*mini-PCIe,support WiFi and Bluetooth 1*Zigbee wireless communication module 1* Bar & QR code scanning module 1* IC card reader module | |
| OS(系統) | Operating System | Windows7/8/10, Linux |
| Structure (機構) | Dissipation | high-quality profile case for quick heat dissipation |
| Housing | aluminum alloy | |
| Bracket | VESA bracket (Optional) | |
| Dimensions | 210 * 249 * 56.9 mm / 8.27 * 9.8 * 2.24 Inch (WxHxD) | |
| Weight | 2.41KG(N.W.) | |
| Power(電源) | DC In | DC 9-24V power supply and AC power adapter |
| Temperature & Humidity(溫/濕度) | Working Temp. | -20~ 65°C (-4°F~149°F) |
| Strorage Temp. | -40°C~ 85°C (-40°F~185°F) | |
| Working Humidity | 10% - 95% relative humidity(Non-condensing) | |
| Cert.(認證) | Protection level | IP51 |
| Safety | CE, FCC, RoHS | |
| Packing(包裝) | Items |
panel pc, power adapter, power cord, CD driver, VESA bracket & 2 antennas(Optional) |
